Shelly Plus Add-On Sensor Interface

Shelly Plus Add-On Sensor Interface

$18.99 CAD
$18.99 CAD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.

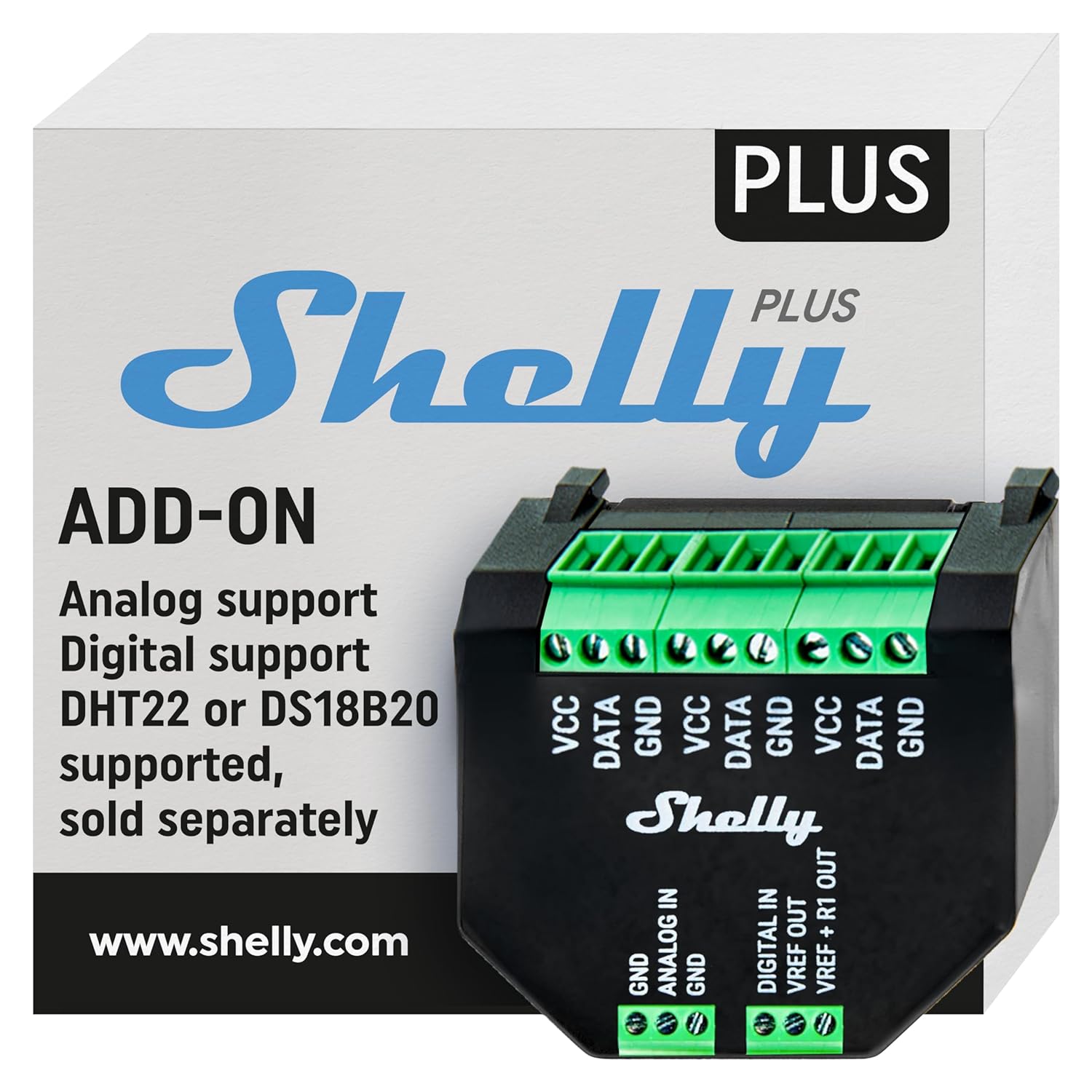

The Shelly Plus Add-On is a versatile sensor interface designed to work with most Arduino sensors. It features digital and analog inputs, allowing you to measure various parameters and create complex automation scenes based on sensor data.

SHELLY-PLUS-ADDON Sensor Interface Features:

  • Arduino Sensor Compatibility: Works with a wide range of Arduino sensors.

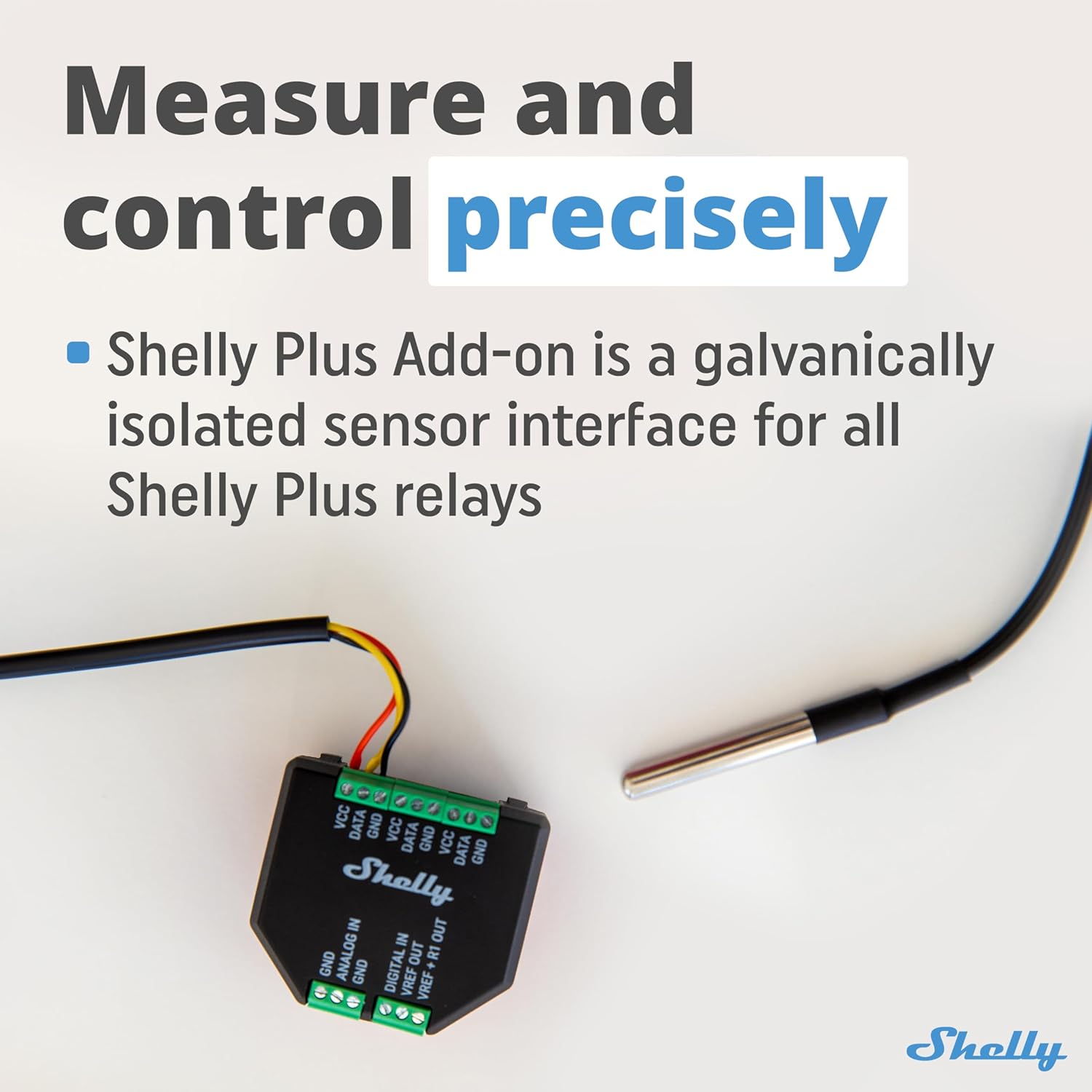

  • Galvanic Isolation: Ensures safe sensor interfacing with all Shelly Plus relays.
  • Analog and Digital Sensors: Connect various sensors to create advanced automation.
  • 1-Wire Interface: Simplifies connectivity for multiple sensor types.
  • Garage Door Monitoring: Enables precise position monitoring.
  • Water Heating Status: Keeps you informed about the water heater's status.
  • Light Control: Automate lights based on luminosity.
  • Weather-Based Awning Control: Adjusts awning according to weather conditions.
  • Efficient Irrigation: Activates irrigation only when necessary.
  • Motion-Controlled Lighting: Supports motion sensors for automatic lighting.
  • Voice Assistant Compatibility: Works with Alexa, Google Home, Android, and iOS for easy voice control.

SHELLY-PLUS-ADDON Sensor Interface Specifications:

PHYSICAL

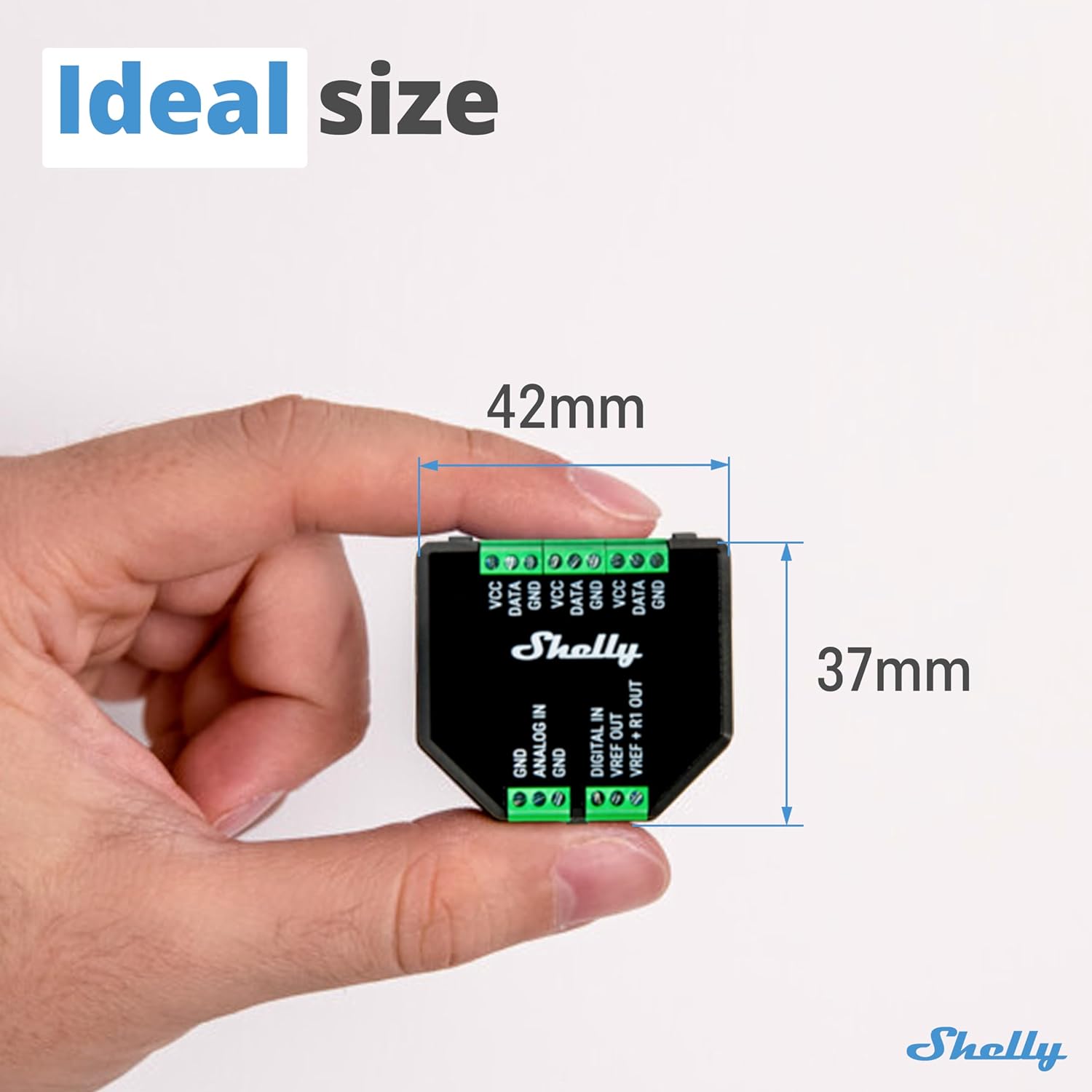

  • Size: 37x42x15 ±0.5 mm / 1.46 x 1.65 x 0.59 ±0.02 in
  • Weight: 105 g / 3.70 oz
  • Shell Material: Plastic
  • Color: Black

ENVIRONMENTAL

  • Ambient Temperature: -20 °C to 40 °C / -5 °F to 105 °F
  • Humidity: 30% to 70% RH
  • Max. Altitude: 2000 m / 6562 ft

ELECTRICAL

  • Power Supply Voltage AC: N/A
  • Power Supply Voltage DC: 3.3 V (from Shelly Plus device)
  • Power Consumption: < 0.5 W (without sensors)

OUTPUT CIRCUITS RATINGS

  • VCC Max. Current: 10 mA
  • VREF OUT Max. Current: 1 mA

SHELLY PLUS DEVICE FIRMWARE CAPABILITIES

  • Supporting Devices: Shelly Plus 1/1PM, Shelly Plus 2PM, Shelly Plus i4/i4DC
  • Temperature Reading: Depends on the DS18B20 or DHT22 sensors
  • Humidity Reading: Depends on the DHT22 sensor
  • Digital Input: -15 V to 0.5 V (True) / 2.5 V to 15 V (False)*
  • Analog Input Range: 0 to 100%
  • Analog Input Report Threshold: 1%**
  • Voltmeter Range: 0 to 10 V
  • Voltmeter Report Threshold: 0.1 V**
  • Analog Input / Voltmeter Accuracy: Better than 5%
