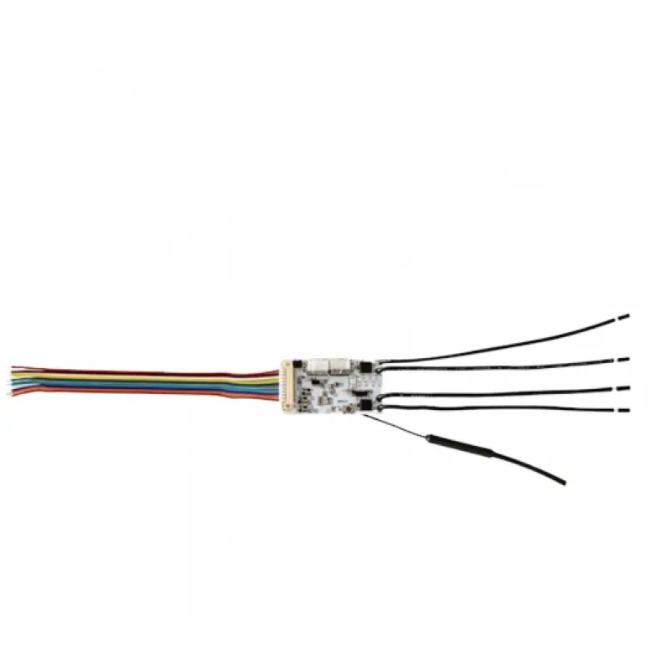

Shelly PLUS UNI WiFi Universal IO Module

The Shelly Plus Uni is a versatile and intelligent universal module designed to provide remote control of electrical appliances and devices via various platforms and protocols, including smartphones, home automation systems, and voice assistants. With its compact design and advanced features, the Shelly Plus Uni offers seamless integration into both residential and commercial environments, allowing users to monitor and manage their devices remotely.

Key Features:

1. Compact and Intelligent Design: The Shelly Plus Uni features two solid-state relays with potential-free contacts, two analog inputs, a pulse counter, and two digital inputs, providing versatile control options for a wide range of electrical appliances and devices.

2. Remote Control and Monitoring: Users can control and monitor their devices remotely via a PC, tablet, smartphone, or home automation system, as long as the device is connected to both a Wi-Fi router and the internet. This allows for convenient access and management from any location with internet access.

3. Easy Setup and Configuration: The device can be set up and configured using the built-in web interface, allowing for easy device control, monitoring, and setup adjustments. Users can also utilize the Shelly Smart Control app for seamless control and management.

4. Compatibility and Integration: The Shelly Plus Uni is compatible with various platforms and protocols, including Alexa, Home Assistant, MQTT, WebSocket, and more, enabling seamless integration into existing smart home setups and automation platforms.

5. Energy Monitoring and Sensor Support: The device supports 1-Wire sensors, including single DHT22 and up to five DS18B20 sensors, allowing users to receive precise data readings from energy, gas, water meters, or any other meter supporting pulse count readings via external sensors.

6. Wi-Fi Range Extender and BLE Gateway: The device functions as a Wi-Fi range extender and BLE gateway, enhancing connectivity and coverage for other devices within the network.

Specifications:

• PCB Size (LxWxH): 40x21x7 mm / 1.57x0.83x0.28 in
• Weight: 8.5 g / 0.3 oz (with cables)
• Ambient Temperature: -20°C to 40°C / -4°F to 104°F
• Humidity: 30% to 70% RH
• Power Supply: 8-24 VAC / 9-28 VDC / 5 VDC (stabilized, via +5 VDC and GND)
• Power Consumption: < 1 W
• Wi-Fi Protocol: 802.11 b/g/n
• Wi-Fi Operational Range:
  • Outdoors: up to 50 m / 160 ft
  • Indoors: up to 30 m / 100 ft
• Bluetooth Protocol: 4.2
• Bluetooth Operational Range:
  • Outdoors: up to 30 m / 100 ft
  • Indoors: up to 10 m / 33 ft
• CPU: ESP32
• Flash: 4 MB
• Schedules: 20
• Webhooks (URL Actions): 20 with 5 URLs per hook
• Scripting: Yes
• MQTT: Yes

Included Components:

• Shelly PLUS UNI WiFi Universal IO Module
• Cables
• User Manual

Additional Information:

• The Shelly Plus Uni offers advanced features and compatibility with various platforms and protocols, making it an ideal choice for remote control and monitoring of electrical appliances and devices in residential and commercial settings.
• With its compact design and versatile functionality, the Shelly Plus Uni provides users with convenient access and control options, allowing for seamless integration into existing smart home setups and automation system
