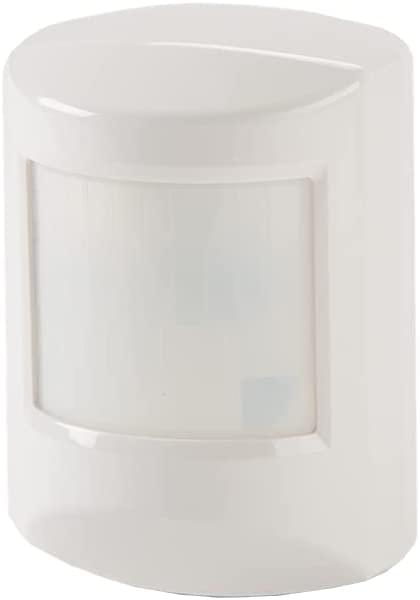

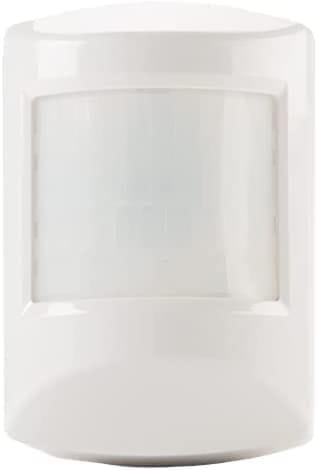

Ecolink ZWave Plus Pet Immune PIR Motion Sensor

Ecolink motion detectors are an easy and effective way to improve the security of your home and family. This passive infrared motion detector is intended for use with Z-Wave Plus enabled systems and is pet-immune up to 55 lbs. It features the latest Z-Wave Plus technology in the new 500 series and is easy to install with mounting hardware or double-sided tape. Sensors must be added to the Z-Wave network before use. The LED light turns red for 10 seconds and then turns off to indicate the recording process is complete.



Brought to you by the leader in Z-Wave Plus technology, Ecolink motion detectors are an easy and effective way to improve the security of your home and family. Built with premium components for superior performance, these motion sensors provide instant, reliable performance as part of your security system. Ecolink is a leading developer of reliable, low-power wireless solutions, including a wide range of intelligent wireless security, sensing and home automation devices.

 This Ecolink motion sensor is a great choice to keep your home safe while avoiding false alarms from cats/dogs and other pets up to 25 kg. The understated design blends seamlessly into your home decor. This passive infrared motion detector is intended for use with Z-Wave Plus enabled systems. This is a wall-mounted device with wide-angle motion protection. In high sensitivity mode, the maximum PIR range is 30 feet deep x 50 feet wide. PIR is pet-immune up to 55 lbs.

 PIRZWAVE2.5-ECO can be used to perform various home automation functions such as Turn on the lights when someone enters the room by notifying the Z-Wave controller of the action.

The sensor features the latest Z-Wave Plus technology in the new 500 series. Before we can use the device, we need to connect it to the Z-Wave network. Once connected, you can use this device to monitor unwanted intruders and trigger Z-Wave alarms on the same network.

 How it works
The Ecolink Z-Wave PIR motion detector protects your home while you're out and won't trigger false alarms when your cat/dog or other pets are walking around. This motion detector offers two sensitivity settings (medium and low) to avoid false alarms. But if anything else changes, you'll receive an SMS or email alert so you can take immediate action.

Long battery life and a slim yet rugged design make this motion detector a perfect addition to the Z-Wave home.

 installation
Easy to install with mounting hardware or double-sided tape (included). Sensors must be added to the Z-Wave network before use. To add a device:

Make sure your Z-Wave controller is in inclusion mode
Insert the battery to enable sensor containment mode. The LED light turns red for 10 seconds and then turns off to indicate the recording process is complete. If the LED light flashes after 10 seconds, repeat the recording process.

 Test your device before assembly.

Place the sensor in an empty room
leave the room for more than 4 minutes
Return to the room and pass in front of the sensor lens
LED light flashes to indicate motion detected
Install the sensor by mounting the bracket to the wall 6.5 to 7.5 feet from the floor (use the tape or screws provided). Align the hole in the back of the sensor with the key on the bracket and slide the sensor down until it clicks into place.
